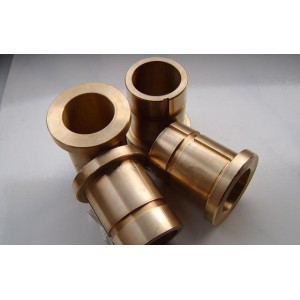

Beryllium Copper Rings

Description:

ALB-Alloy are capable of producing the beryllium copper rings according to Customer’s drawing and available samples or detailed inquiry.



Available products:



The mainly available ring is C17200 beryllium copper rings, C17500 beryllium copper ring, C17510 beryllium copper ring, CuCo1Ni1Be beryllium copper rings.



Typical application:

Electrical

Instrument parts, connectors, heavy duty relay parts, conductors, switch parts, fuse clips.



Industrial

Welding equipment parts, die casting plunger tips, high flux electromagnets, thermal transfer plates.



ALB-Alloy advantage:

Class 4 Alloy has extremely high hardness and ultimate tensile strength although the electrical conductivity is lower than the Class 3 Alloy

Class 4 Beryllium Copper (17200) is available in heat treatable tempers. Alloys are used in a wide range of applications requiring  high strength and stiffness with good conductivity.

Typical uses include electrical/electronic connectors, current-carrying springs, precision screw machined parts, welding electrodes, bearings, plastic molds and corrosion resistant components.



Class 3 Alloy is specifically recommended for projection welding dies, flash and butt welding dies, current carrying shafts and bushings.  As castings,
Class 3 Alloy (having higher strength than Class 2), is recommended for highly stressed welder structural current carrying members and heavy duty offset electrode holders.

Class 3 Alloy is generally recommended for spot welding and seam welding steels having high electrical resistance, such as stainless steels.
The Class 3 Alloy is heat treatable.



Class 3 copper is specifically recommended for projection welding dies, flash and butt welding dies, current carrying shafts and bushings. Class 3 castings are recommended for welder components that carry current, and are under heavy load, including heavy duty offset electrode holders. Class 3 copper is generally recommended for spot welding and seam welding steels having high electrical resistance, such as stainless steels.



Industry Spotlight

  • CHECK the ALB-ALLOY beryllium copper alloys application for Automotive Industry.
  • CHECK the ALB-ALLOY beryllium copper alloys application for Aerospace Industry.
  • CHECK the ALB-ALLOY beryllium copper alloys application for RWMA Industry.
  • CHECK the ALB-ALLOY beryllium copper alloys application for Plastic Mould Industry.
