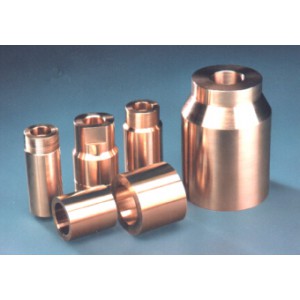

beryllium copper sleeves

Description:

ALB-Alloy is capable of producing & machining beryllium copper sleeves, shot sleeves, shaft sleeves, shaft sleeves, coupling and the other sleeves according to Customer’s drawing or available samples.

Available products:

The mainly available Custom Fabricated Shot Sleeves are C17200 beryllium copper sleeves,  C17500 beryllium copper sleeves, C17510 beryllium copper sleeves, CuCo1Ni1Be beryllium copper sleeves

Tips forms supplied are from rings, discs, square and rectangular sections, further machined to exact dimensions as well as customers’ required specification.

Typical application:

Aluminum die casting industry

Plastic Molding industry

ALB-Alloy advantage:

Class 4 Alloy has extremely high hardness and ultimate tensile strength although the electrical conductivity is lower than the Class 3 Alloy

Class 4 Beryllium Copper (17200) is available in heat treatable tempers. Alloys are used in a wide range of applications requiring  high strength and stiffness with good conductivity.

Typical uses include electrical/electronic connectors, current-carrying springs, precision screw machined parts, welding electrodes, bearings, plastic molds and corrosion resistant components.

Class 3 Alloy is specifically recommended for projection welding dies, flash and butt welding dies, current carrying shafts and bushings.  As castings,
Class 3 Alloy (having higher strength than Class 2), is recommended for highly stressed welder structural current carrying members and heavy duty offset electrode holders.

Class 3 Alloy is generally recommended for spot welding and seam welding steels having high electrical resistance, such as stainless steels.

The Class 3 Alloy is heat treatable.
